Introduction
We'll cover the following...
In this section of the course you will be building a memory-efficient CNN known as SqueezeNet. Although small, its performance is on par with much larger models such as AlexNet, the breakthrough deep CNN that won the 2012 ImageNet Challenge. We will train the model on the CIFAR-10 dataset, which contains 60,000 images in 10 different classes.
A. Memory Usage
While we’re normally concerned with model accuracy, the amount of memory a model uses is important as well. After training a model, we store its computation graph and parameters (weights + biases) for future use. Though a model’s computation graph is relatively small (since even large models won’t have more than a couple hundred layers), the number of parameters a model has can be in the millions.
Most high performance models require hundreds of MB of space to store their parameters. The aforementioned AlexNet uses over 200MB for storage of 60 million parameters. On the other hand, the SqueezeNet model architecture uses less than 1MB. That’s even less memory than the simple digit recognition model we built in the previous chapter (13MB). However, SqueezeNet has significantly better performance than our previous model and actually matches AlexNet in accuracy.
When accuracy between two models is relatively equal, we prefer the model that uses up less memory.
B. Calculating parameters

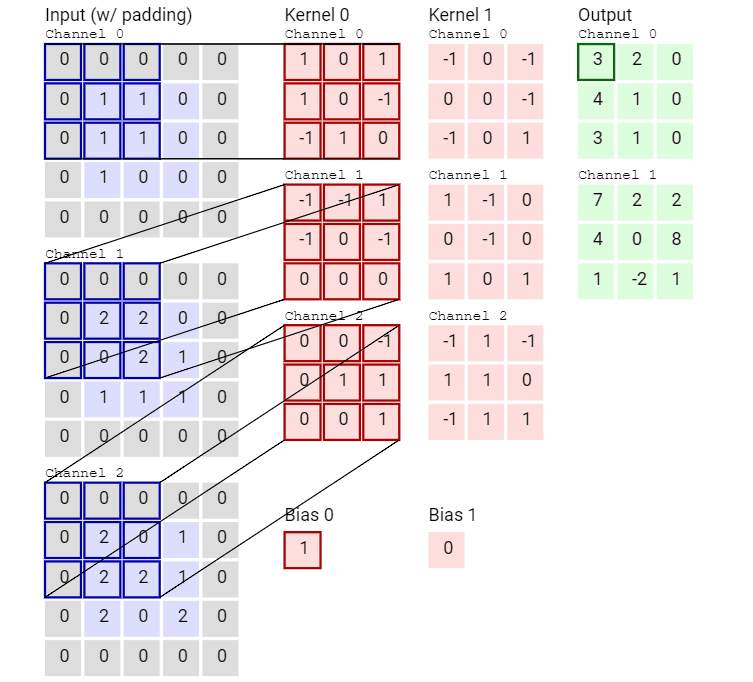

To understand model sizes, we need to be able to calculate the number of parameters in a model. Let’s take a look at an example convolution layer:
The convolution layer parameters are the kernel weights and biases. Each kernel has 3x3 dimensions, and there are 3 kernels for each of the 2 filters. Therefore, the total number of kernel weights is ...
