In the previous lesson, we eliminated potential anomalies with less than 10 entries. Using thresholds, we were able to remove some non-interesting anomalies.

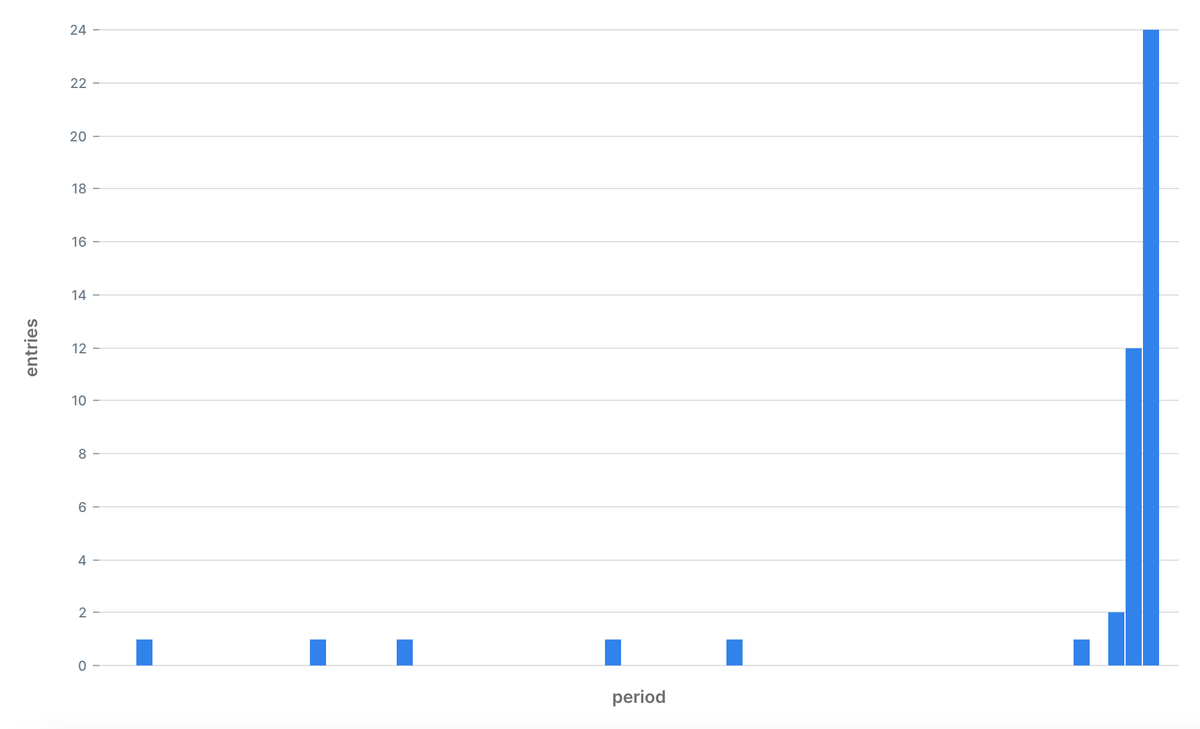

Let’s have a look at the data for status code 400 after applying the threshold:

The first alert happened at 17:59, and a minute later, the z-score was still high with a large number of entries, and so we classified the next rows at 18:00 as an anomaly as well.

If you think of an alerting system, we want to send an alert only when an anomaly first happens. We do not want to send an alert every minute until the z-score comes back below the threshold. In this case, we only want to send one alert at 17:59. We do not want to send another alert a minute later at 18:00.

Let’s remove alerts where the previous period was also classified as an alert:

Press + to interact

WITH calculations_over_window AS (
   SELECT
       status_code,
       period,
       entries,
       AVG(entries) OVER status_window as mean_entries,
       STDDEV(entries) OVER status_window as stddev_entries
   FROM
       server_log_summary
   WINDOW status_window AS (
       PARTITION BY status_code
       ORDER BY period
       ROWS BETWEEN 60 PRECEDING AND CURRENT ROW
   )
),
with_zscore AS (
   SELECT
       *,
       (entries - mean_entries) / NULLIF(stddev_entries::float, 0) as zscore
   FROM
       calculations_over_window
),
with_alert AS (
   SELECT
       *,
       entries > 10 AND zscore > 3 AS alert
   FROM
       with_zscore
),
with_previous_alert AS (
   SELECT
       *,
       LAG(alert) OVER (PARTITION BY status_code ORDER BY period) AS previous_alert
   FROM
       with_alert
)
SELECT
   status_code,
   period,
   entries,
   zscore,
   alert
FROM
   with_previous_alert
WHERE
   alert AND NOT previous_alert
ORDER BY
   period DESC;
