Critical Sections & Race Conditions

This lesson exhibits how incorrect synchronization in a critical section can lead to race conditions and buggy code. The concepts of critical section and race condition are explained in depth. Also included is an executable example of a race condition.

We'll cover the following

Critical Section & Race Conditions

Critical Section & Race Conditions

A program is a set of instructions being executed and multiple threads of a program can be executing different sections of the program code. However, caution should be exercised when threads of the same process attempt to simultaneously execute the same portion of code.

Critical Section

Critical section is any piece of code that has the possibility of being executed concurrently by more than one thread of the application and exposes any shared data or resources used by the application for access.

Race Condition

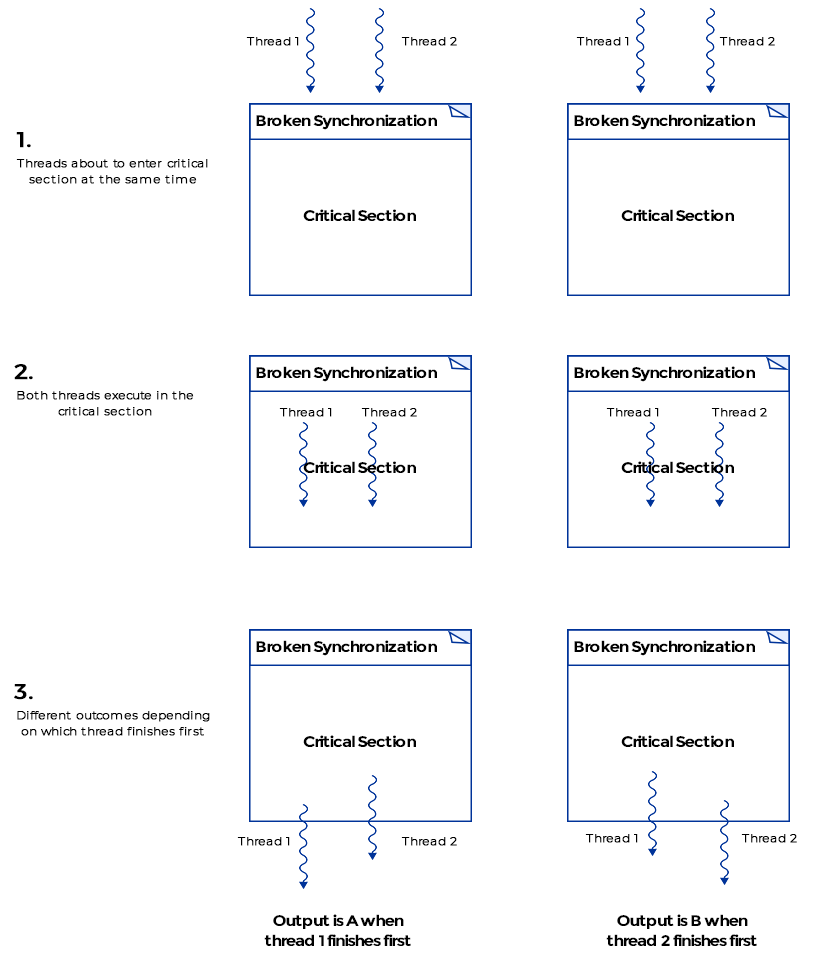

Race conditions happen when threads run through critical sections without thread synchronization. The threads "race" through the critical section to write or read shared resources and depending on the order in which threads finish the "race", the program output changes. In a race condition, threads access shared resources or program variables that might be worked on by other threads at the same time causing the application data to be inconsistent.

As an example, consider a thread that tests for a state/condition, called a predicate, and then takes subsequent action based on that condition. This sequence is called test-then-act. The pitfall here is that the state can be mutated by the second thread just after the test by the first thread and before the first thread takes action based on the test. A different thread changes the predicate in between the test and act. In this case, action by the first thread is not justified since the predicate doesn't hold when the action is executed.

Consider the snippet below. We have two threads working on the same variable randInt. The modifier thread perpetually updates the value of randInt in a loop while the printer thread prints the value of randInt only if randInt is divisible by 5. If you let this program run, you'll notice some values get printed even though they aren't divisible by 5 demonstrating a thread unsafe version of test-then-act.

Example Thread Race

The program below spawns two threads. One thread prints the value of a shared variable whenever the shared variable is divisible by 5. A race condition happens when the printer thread executes a test-then-act if clause, which checks if the shared variable is divisible by 5, but before the thread can print the variable out, its value is changed by the modifier thread. Some of the printed values aren't divisible by 5, which verifies the existence of a race condition in the code.

Press + to interact

using System;
using System.Threading;

class Demonstration
{
    static void Main()
    {
        new RaceCondition().runTest();
    }
}

public class RaceCondition
{
    int randInt;
    Random random = new Random();


    void printer()
    {
        long i = 100000000;
        while (i != 0)
        {
            if (randInt % 5 == 0)
            {
                if (randInt % 5 != 0)
                    Console.WriteLine(randInt);
            }
            i--;
        }
    }

    void modifier()
    {
        long i = 100000000;
        while (i != 0)
        {
            randInt = random.Next(1000);
            i--;
        }
    }

    public void runTest()
    {

        Thread printerThread = new Thread(new ThreadStart(printer));
        Thread modifierThread = new Thread(new ThreadStart(modifier));

        printerThread.Start();
        modifierThread.Start();

        printerThread.Join();
        modifierThread.Join();
    }
}

Even though the if condition on line 23 makes a check for a value which is divisible by 5 and it only then prints randInt, it is just after the if check and before the print statement, i.e. in-between lines 23 and 26, that the value of randInt is modified by the modifier thread! This is what constitutes a race condition.

For the impatient, the fix is presented below where we guard the read and write of the randInt variable using a Mutex object. Don't fret if the solution doesn't make sense for now. It will once we cover various topics in the lessons ahead. If you run the fixed version in the code widget below, there will be no output.

Press + to interact

using System;
using System.Threading;

class Demonstration
{
    static void Main()
    {
        new RaceConditionFixed().runTest();
    }
}

public class RaceConditionFixed
{
    int randInt;
    Random random = new Random();
    Mutex mutex = new Mutex();


    void printer()
    {
        long i = 1000000;
        while (i != 0)
        {
            mutex.WaitOne();
            if (randInt % 5 == 0)
            {
                if (randInt % 5 != 0)
                    Console.WriteLine(randInt);
            }
            mutex.ReleaseMutex();

            i--;

        }
    }

    void modifier()
    {
        long i = 1000000;
        while (i != 0)
        {
            mutex.WaitOne();
            randInt = random.Next(1000);
            mutex.ReleaseMutex();

            i--;
        }
    }

    public void runTest()
    {

        Thread printerThread = new Thread(new ThreadStart(printer));
        Thread modifierThread = new Thread(new ThreadStart(modifier));

        printerThread.Start();
        modifierThread.Start();

        printerThread.Join();
        modifierThread.Join();
    }
}
