What is TLB shootdown?

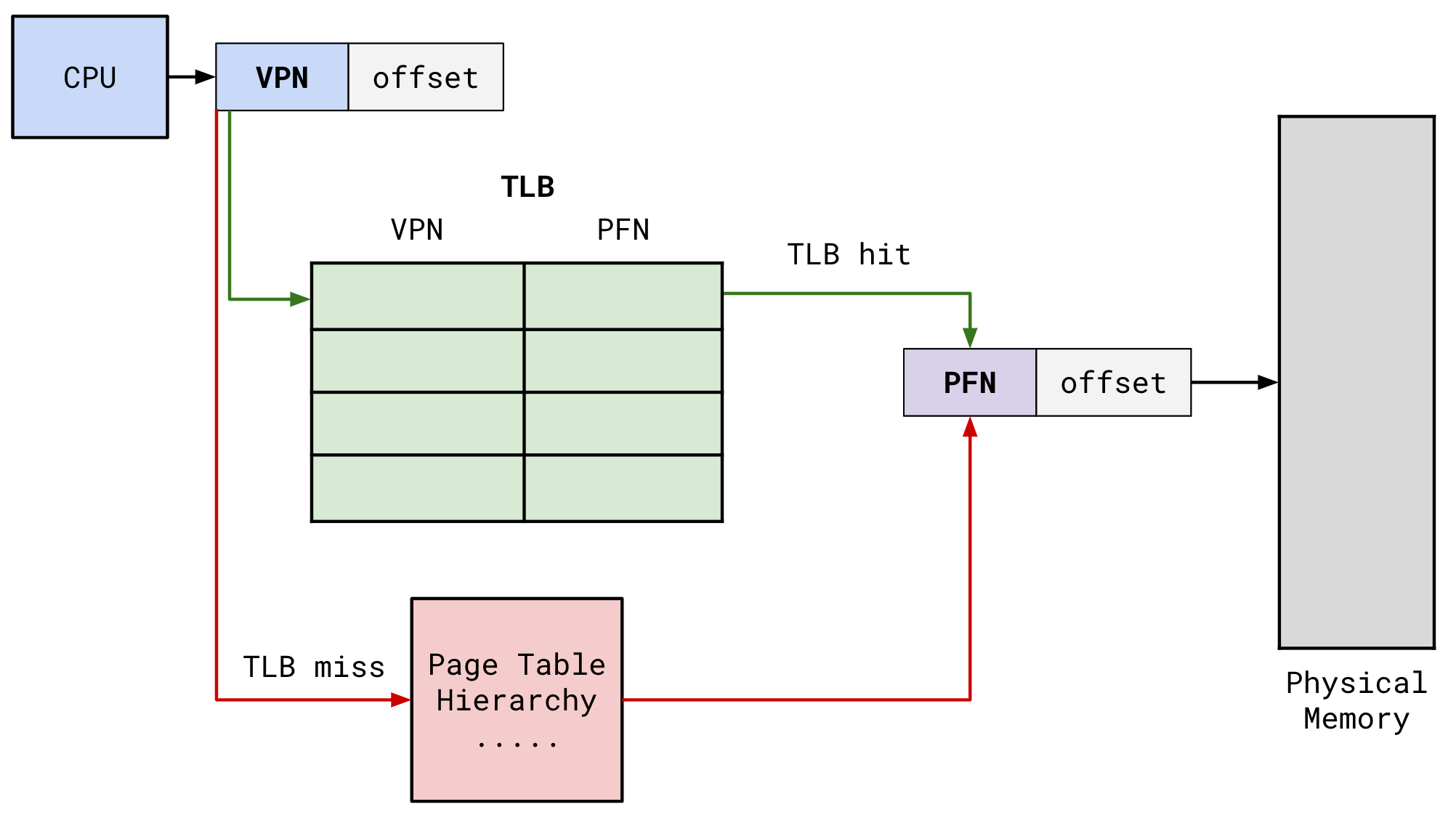

The process of invalidating or updating the translation lookaside buffer (TLB) in a computer system is referred to as a TLB shootdown. The TLB serves as a cache that accelerates memory access in computing systems. It stores recently accessed virtual to physical memory address translations, allowing the CPU to quickly retrieve the physical addresses associated with virtual addresses.
A TLB shootdown involves the invalidation or update of TLB entries in response to changes in memory mappings or page tables. When there are modifications in the system, such as process migration, page table updates, or interprocessor communication, the TLB must be adjusted to maintain the consistency between virtual addresses and physical addresses.
Causes of TLB shootdown
Process migration: TLB Shootdown may occur when a process is moved from one memory region to another, necessitating the invalidation of TLB entries associated with the previous memory mapping.
Page table updates: TLB entries need to be invalidated or updated when there are modifications to the page tables, such as adding or removing memory pages or changing page permissions.
Interprocessor communication: In multiprocessor systems, TLB synchronization is required when data is shared or accessed across different processors or cores. TLB Shootdown is triggered to ensure the TLBs across processes reflect the latest memory mappings to maintain consistency.
TLB shootdown steps
The first step in the TLB shootdown is to identify the cause of the shootdown, which could be due to process migration, page table updates, or interprocessor communication. Once the cause is determined, the TLB entries associated with the affected memory regions or pages are invalidated and marked as invalid. If there are new memory mappings, the TLB entries are then updated or reloaded with the correct mappings.
In a multiprocessor system, synchronization is performed to ensure all processors have consistent TLB updates. Optionally, a TLB flush or purge may be executed to clear the entire TLB or specific entries. This process allows for the accurate reflection of memory mappings in the TLB. Hence, it maintains system performance and data integrity.
Implications of a TLB shootdown
Performance mpact: TLB shootdowns can cause overhead, which in turn leads to temporary memory access delays and possibly affects system responsiveness and throughput.
Memory access latency: As more memory translations are carried out as a result of TLB shootdowns, memory access latency may grow. This compromises the responsiveness and performance of an application.
Cache Coherence: TLB shootdowns require synchronization to maintain cache coherence, especially in multiprocessor systems. This adds to communication and synchronization costs.
Context switch overhead: TLB shootdowns during process migration or context switching can increase overhead, which affects the system's responsiveness and the amount of time it takes to switch contexts.
Conclusion
In conclusion, TLB shootdowns play a vital role in maintaining memory consistency and system performance. While they introduce overhead and can impact responsiveness, TLB shootdowns are necessary to ensure accurate memory addressing and prevent errors. Mitigation techniques such as optimizing memory management algorithms, minimizing shootdown frequency, and employing efficient synchronization methods in multiprocessor systems help minimize the impact of TLB shootdowns. By striking a balance between performance and accuracy, it contributes to improved system efficiency, cache coherence, and overall memory management.
